Parts · UK next-day dispatch

Genuine parts, selected with engineers.

Raytools-compatible heads, nozzles, ceramic holders, protective lenses and sealing rings. Choose your laser head, point to the part you need, and order the exact consumable — or enquire directly with our team.

Step 1 — Choose your laser head

Select your head to view compatible parts.

Step 2 — Point to a part · BM111 Series

Explore the head. Pick the part.

↖ Select a part label to view it in the store

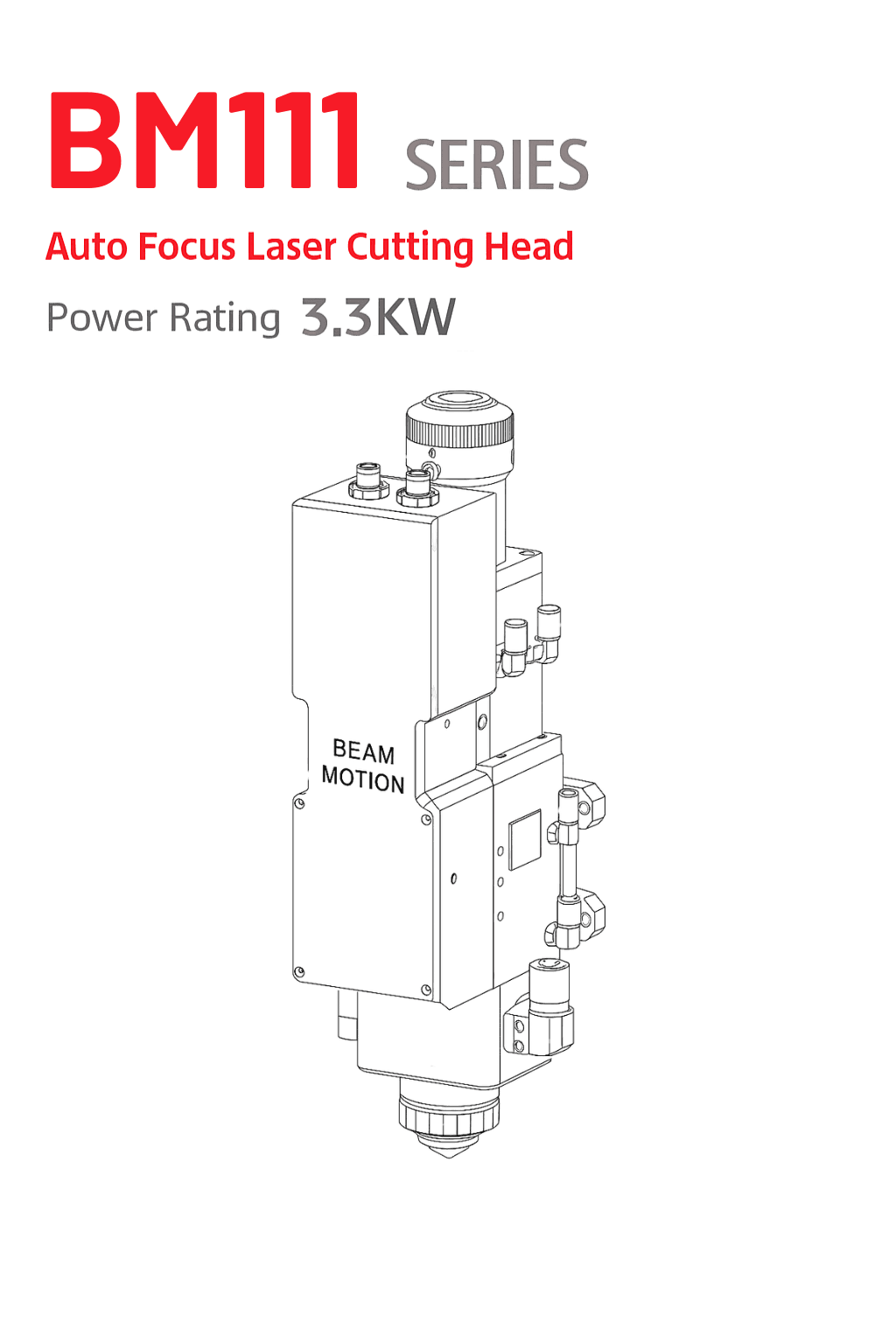

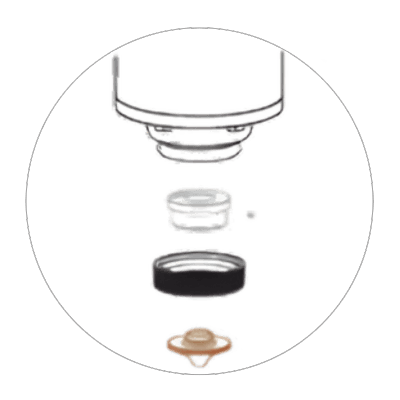

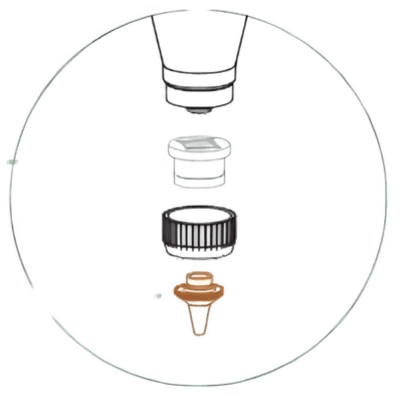

BM111 Series exploded diagram
Protective Lens → D27.9 × 4.1mm · D27.9 × 1.5mm Seal Ring → 32.2 × 2.4 × 3.55mm
Ceramic Body → Dia. 19.5/M8 · Dia. 32/M14 Tube Nozzle → M8 / H19mm
Ceramic Body → Dia. 32/M14 · Dia. 19.5/M8 Sheet Nozzle → M14/H15mm · M11/H11mm
Not sure which part fits? Ask an engineer → Send your make & model — we'll confirm compatibility, usually within 24 hours.
Head-specific support

BM111 Series FAQs.

Common faults on this head and the first checks our engineers run. Can't resolve it? Talk to a UK engineer — we respond within 24 hours.

Speak to an engineer →
Possible causes
  • Incorrect cutting parameters
  • Worn or dirty nozzle
  • Focus position incorrect
  • Dirty protective lens
Check
  • Verify cutting parameters
  • Replace or clean nozzle
  • Adjust focus height
  • Clean the lens
Possible causes
  • Nozzle misalignment
  • Gas pressure incorrect
  • Focus offset wrong
  • Lens contamination
Check
  • Re-center the nozzle
  • Adjust gas pressure
  • Recalibrate focus
  • Clean optics
Possible causes
  • Sensor failure
  • Loose or damaged cables
  • Mechanical obstruction
Check
  • Inspect sensors and wiring
  • Ensure free head movement
  • Restart the system
Possible causes
  • Gas contamination
  • Air leakage
  • Incorrect lens installation
  • Strong back-reflection
Check
  • Use clean cutting gas
  • Check seals and O-rings
  • Install lens correctly
Possible causes
  • Protective lens damaged
  • Fiber connection loose
  • Safety interlock triggered
  • Optical path misaligned
Check
  • Replace damaged lens
  • Tighten fiber connector
  • Reset alarms and inspect optics
Browse by part type

Consumables & replacement parts.

Laser Heads

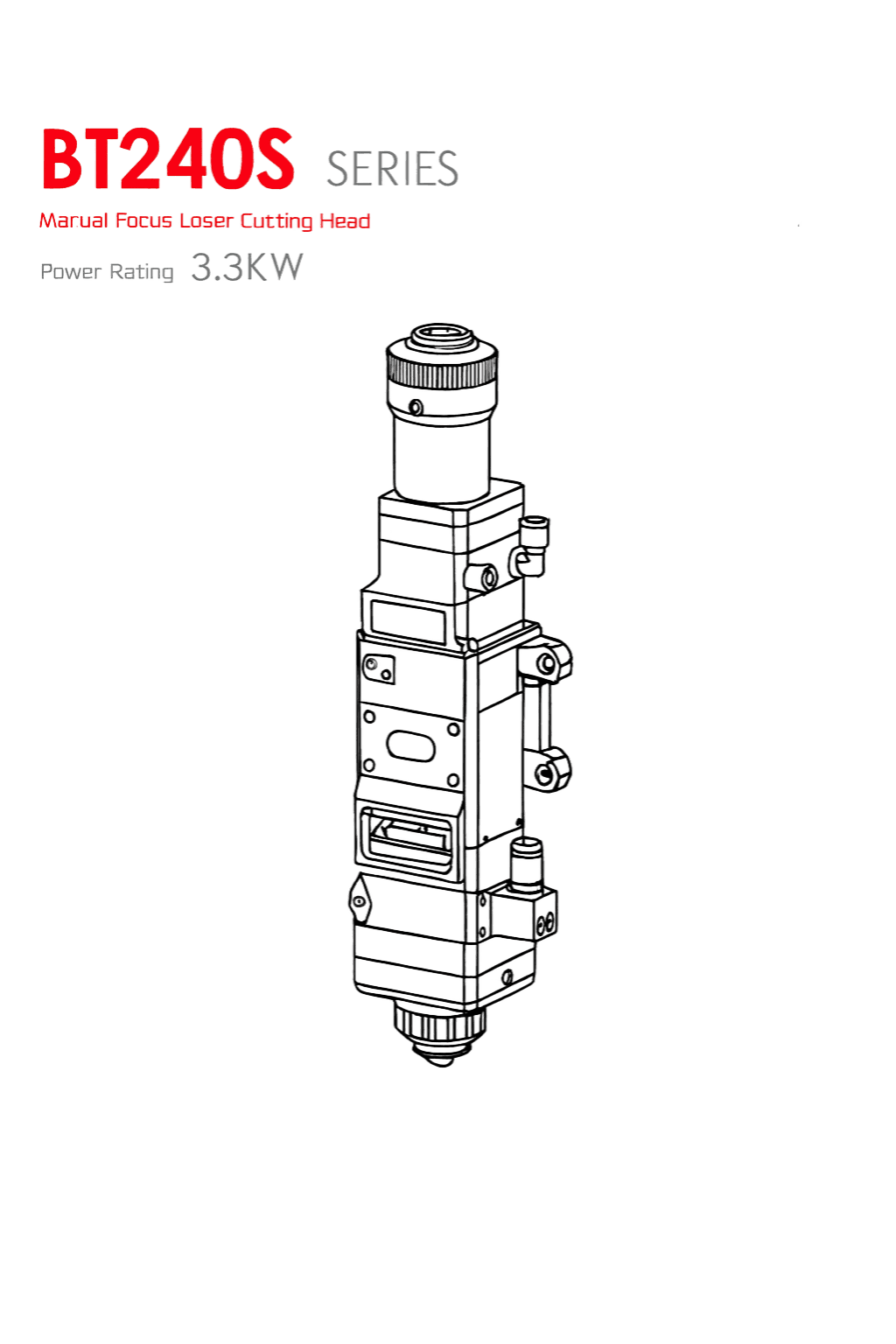

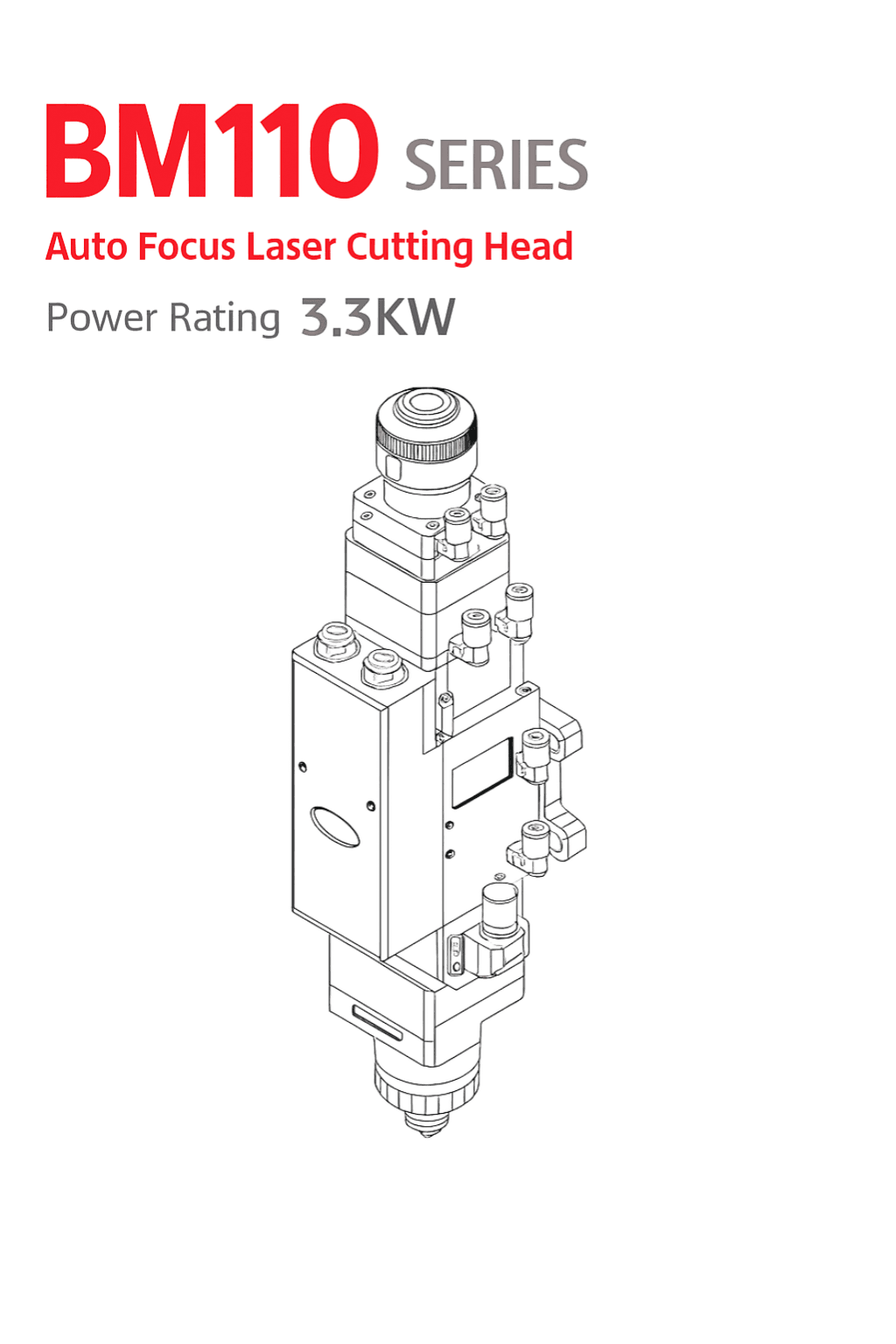

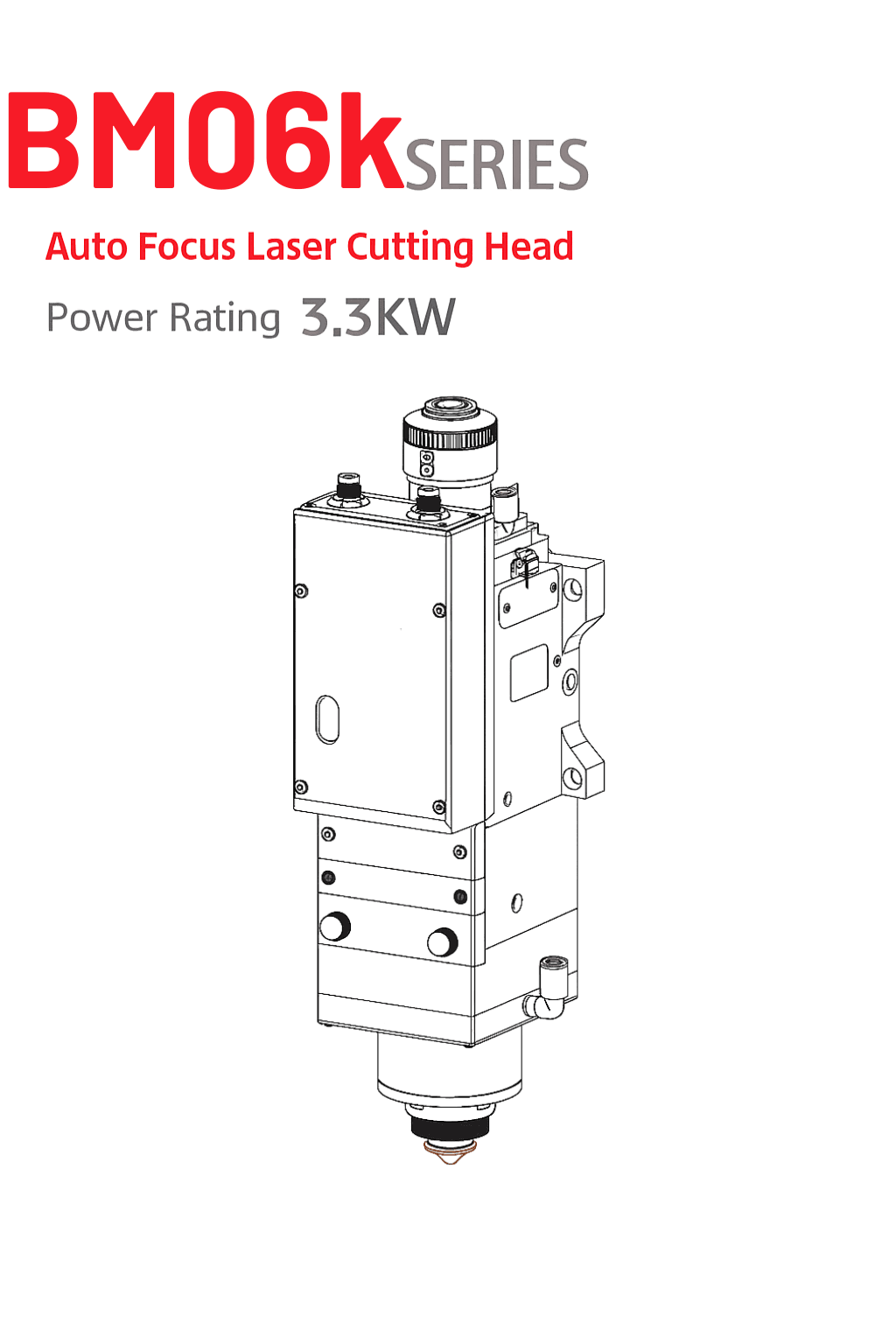

BM111 · BT240S · BM110 · BM06k

Nozzles

Single & double · all bores

Ceramic Holders

Nozzle locator bodies

Protective Lenses

All common diameters

Sealing Rings

Lens seal kits
How ordering & enquiry works

From point-and-pick to dispatched.

1
Choose head
2
Choose part
3
Order or enquire
4
Confirm machine details
5
We dispatch / reply with availability

Order common consumables straight from the store, or tell us your machine make & model and we'll confirm the exact part, price and lead time, usually within 24 hours.

Need a part fast?

Keep a breakdown from becoming downtime.

Request a part →
